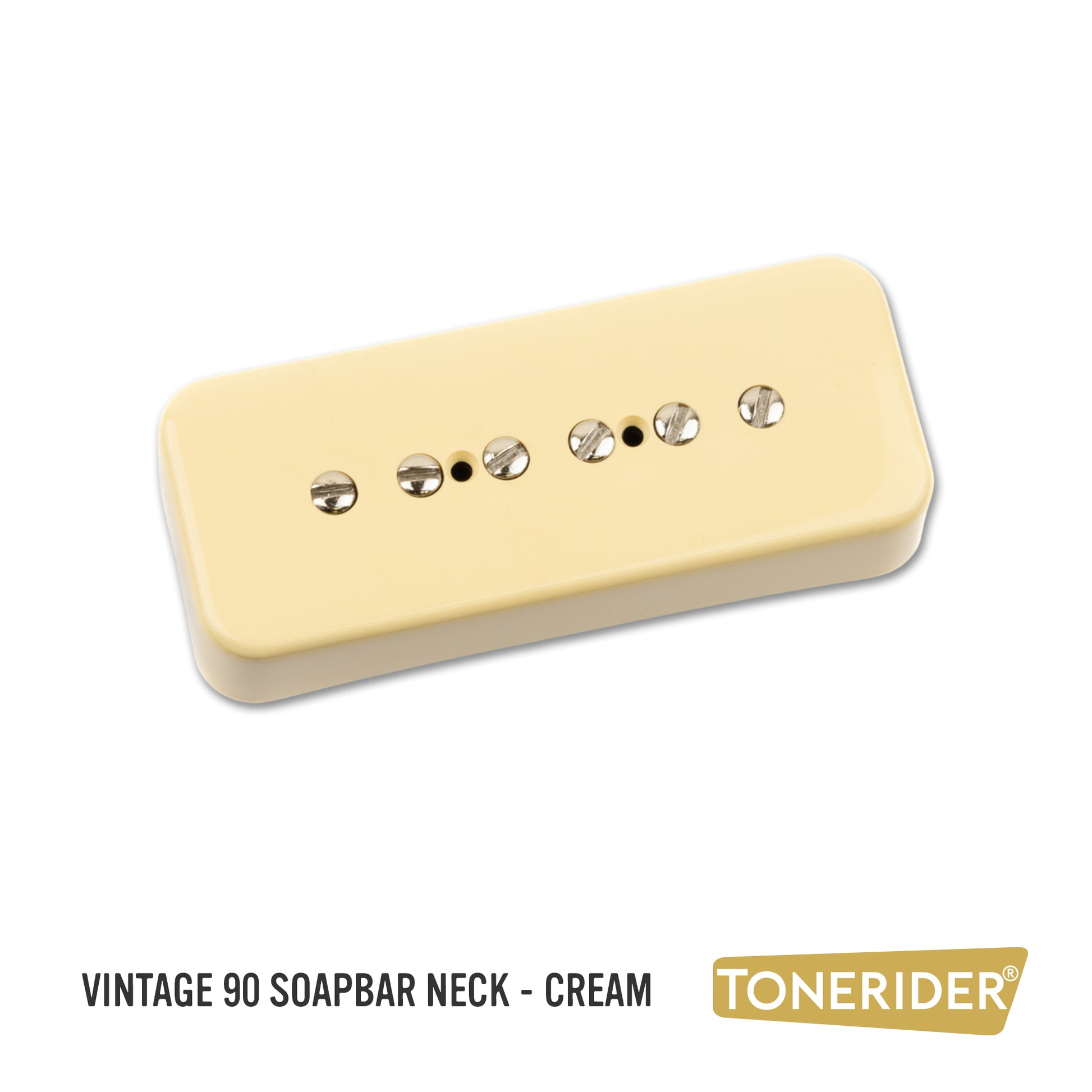

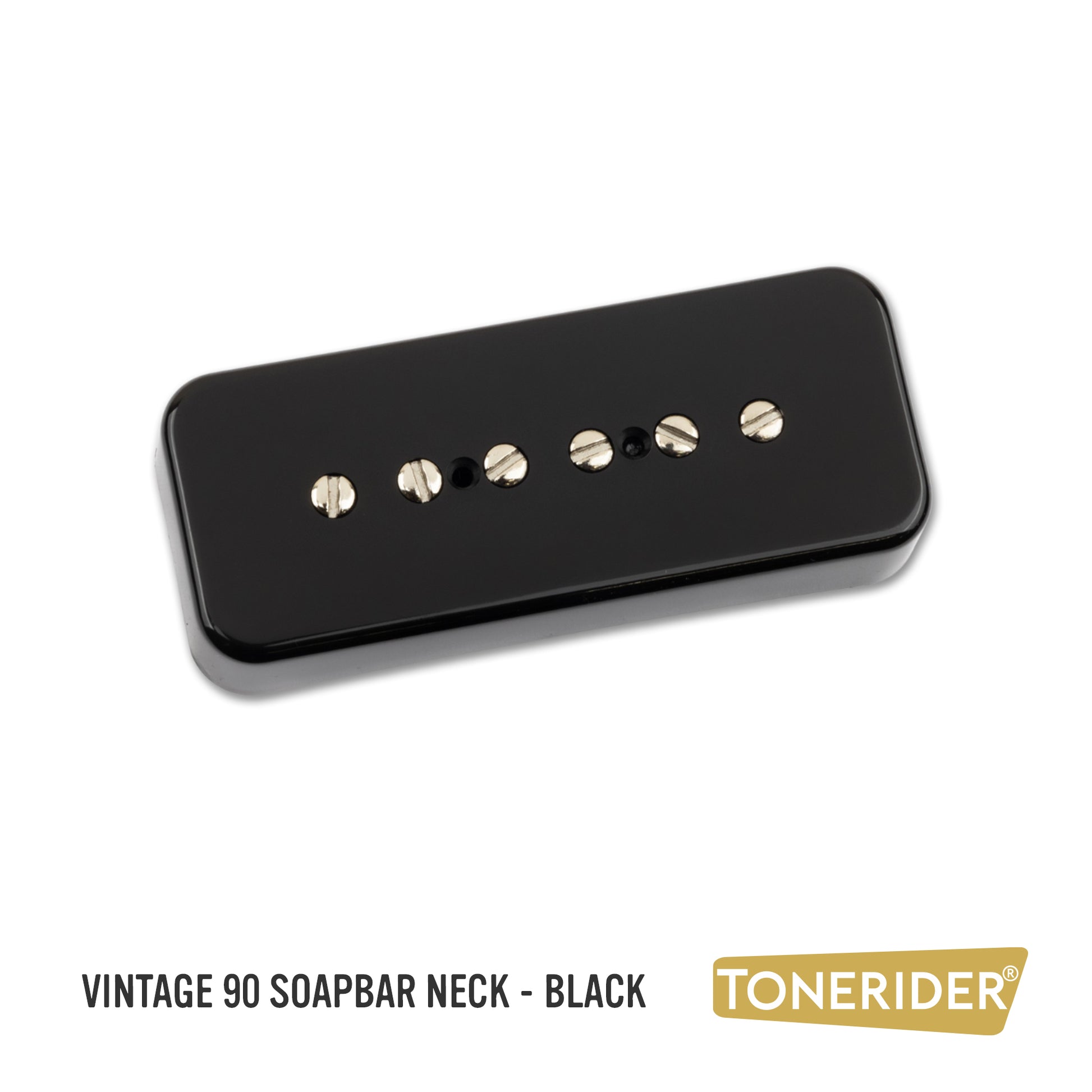

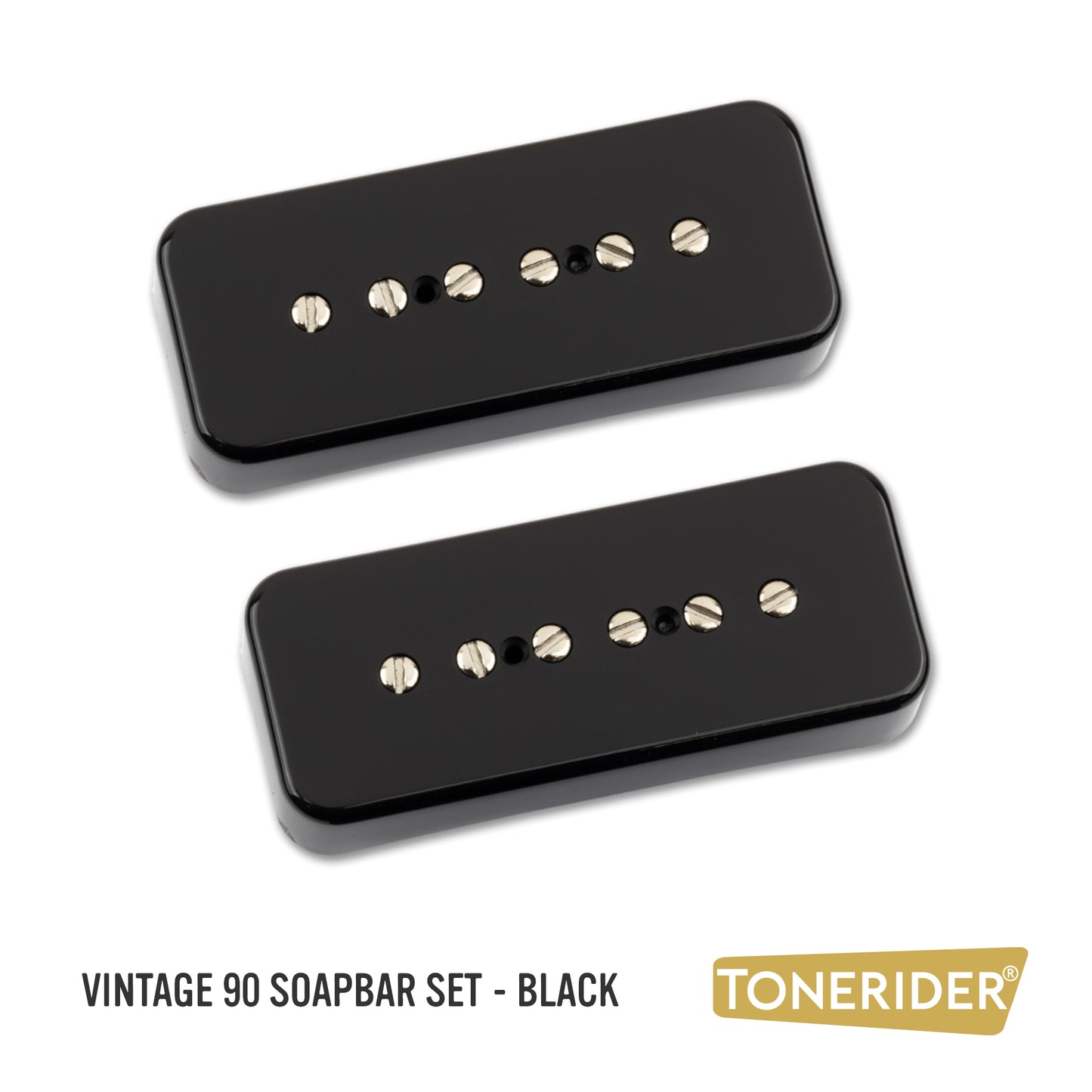

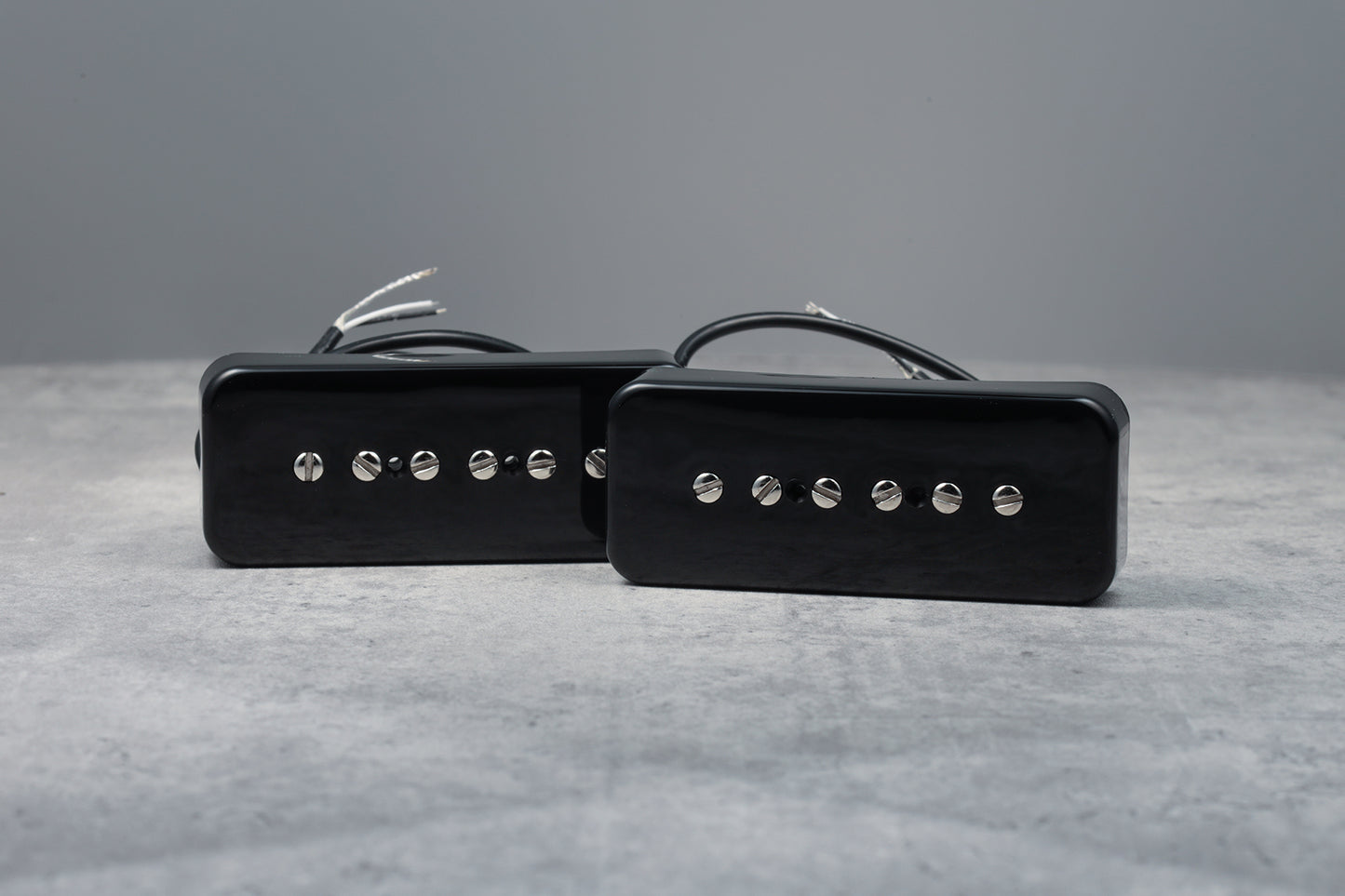

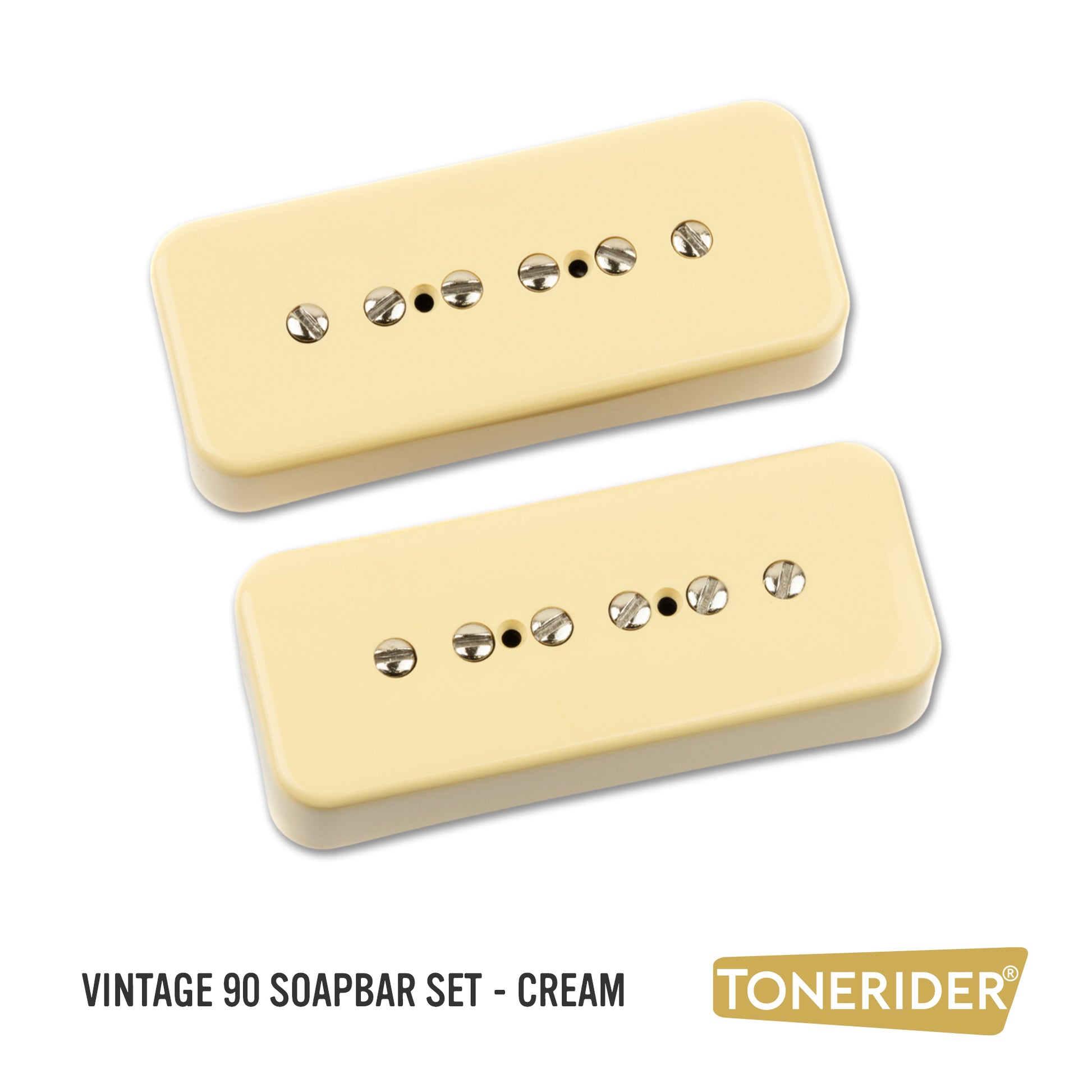

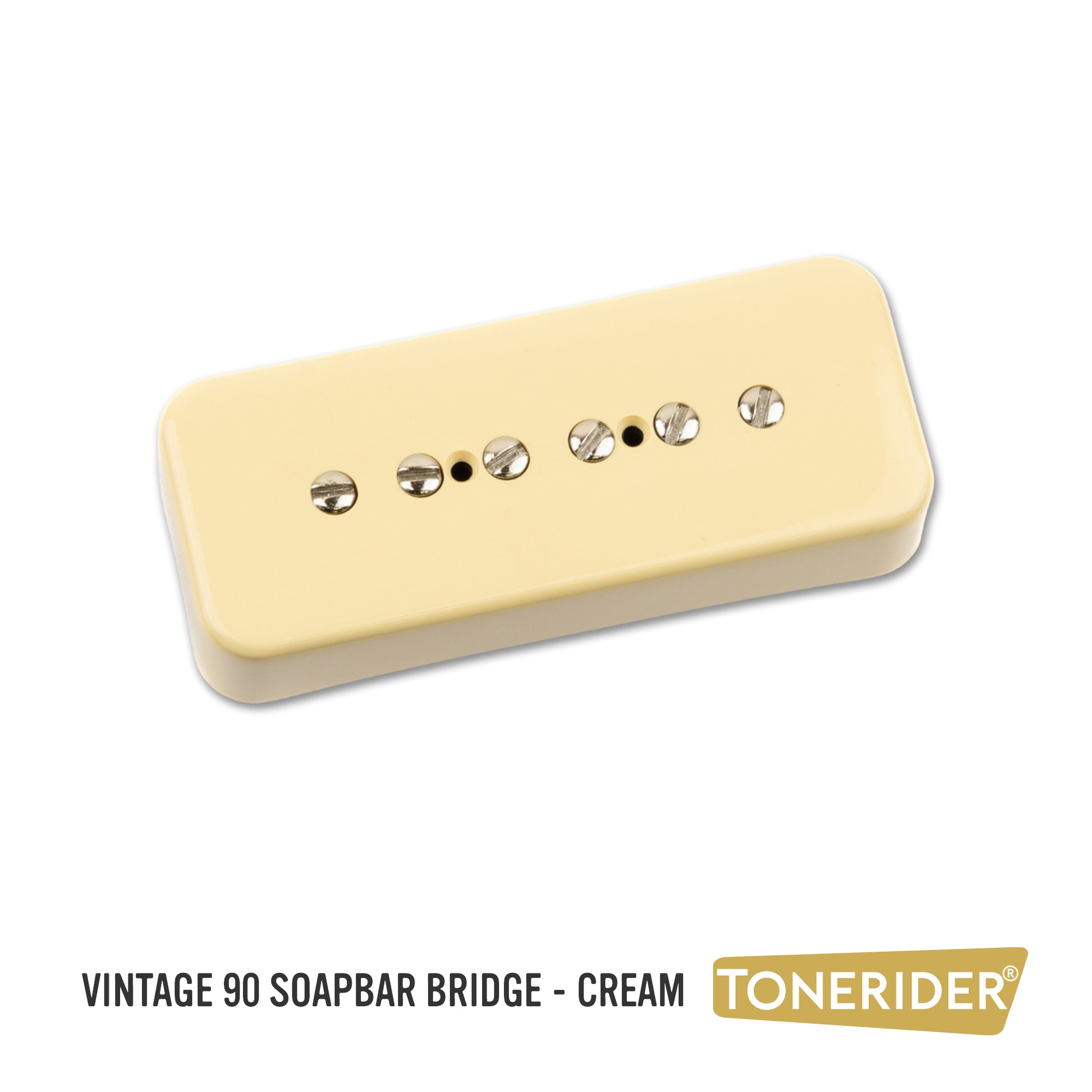

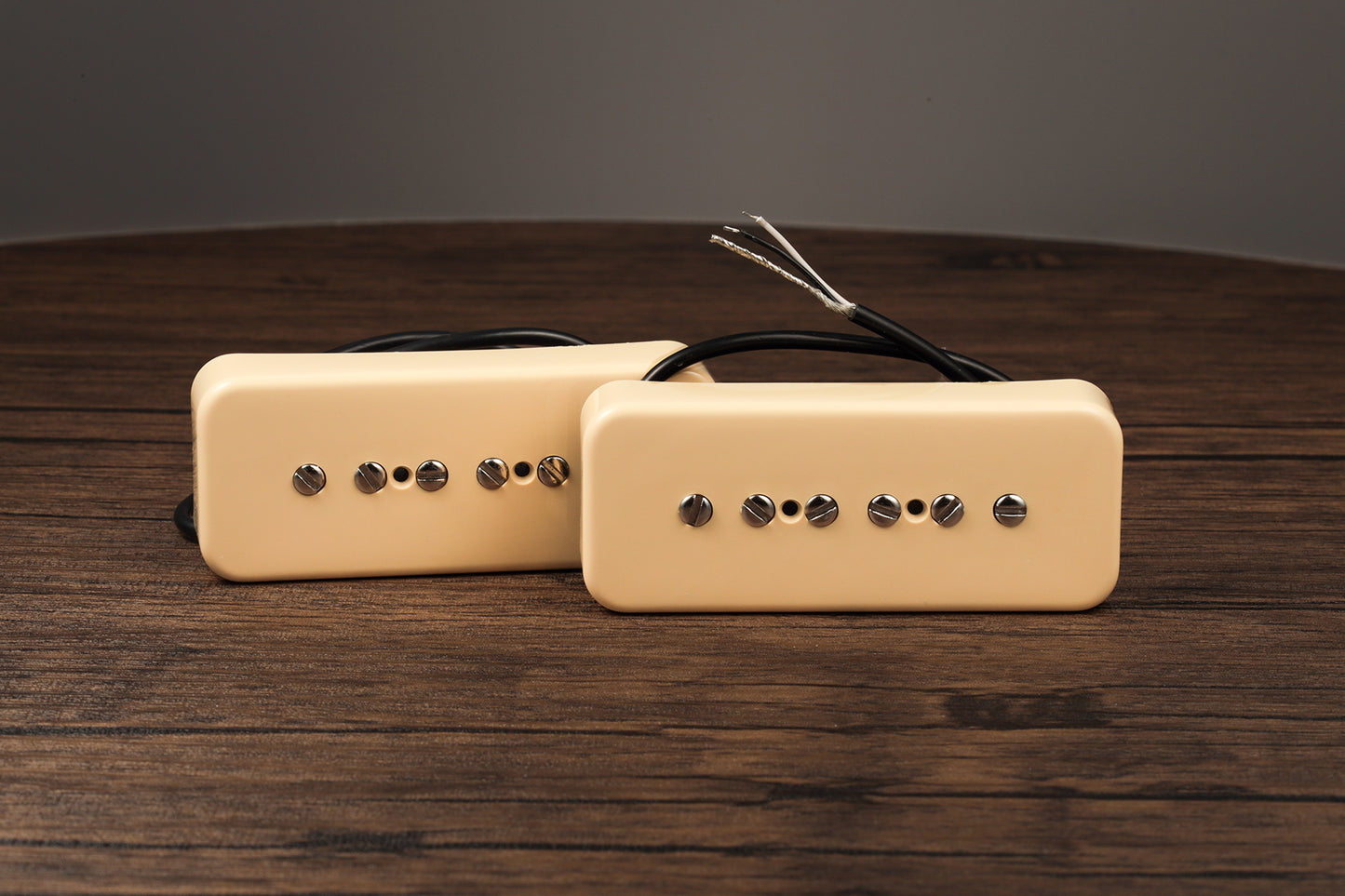

Our Vintage 90 set uses Alnico II magnets for great sustain and unrivalled clarity. Played clean, they deliver authentic single coil tones but with more girth and body than a strat or tele pickup can deliver. Crank up the gain for a thick yet clear and articulate distortion tone.
Vintage correct CAB covers now on all models.
Screws and foam supplied for installation.
Neck 7.6k / Bridge 7.9k, Alnico 2
Tech Specs
| Vintage 90 Neck | Vintage 90 Bridge | |
|---|---|---|
| Model | V90N | V90B |
| Magnet | Alnico 2 Bar | Alnico 2 Bar |
| DCR | 7.6k | 7.9k |
| Inductance | 6.6H | 6.8H |
| Hookup Wire | 2-Conductor | 2-Conductor |
| Winding Direction | Counter-Clockwise | Clockwise |
| Polarity | South Pole Up | North Pole Up |

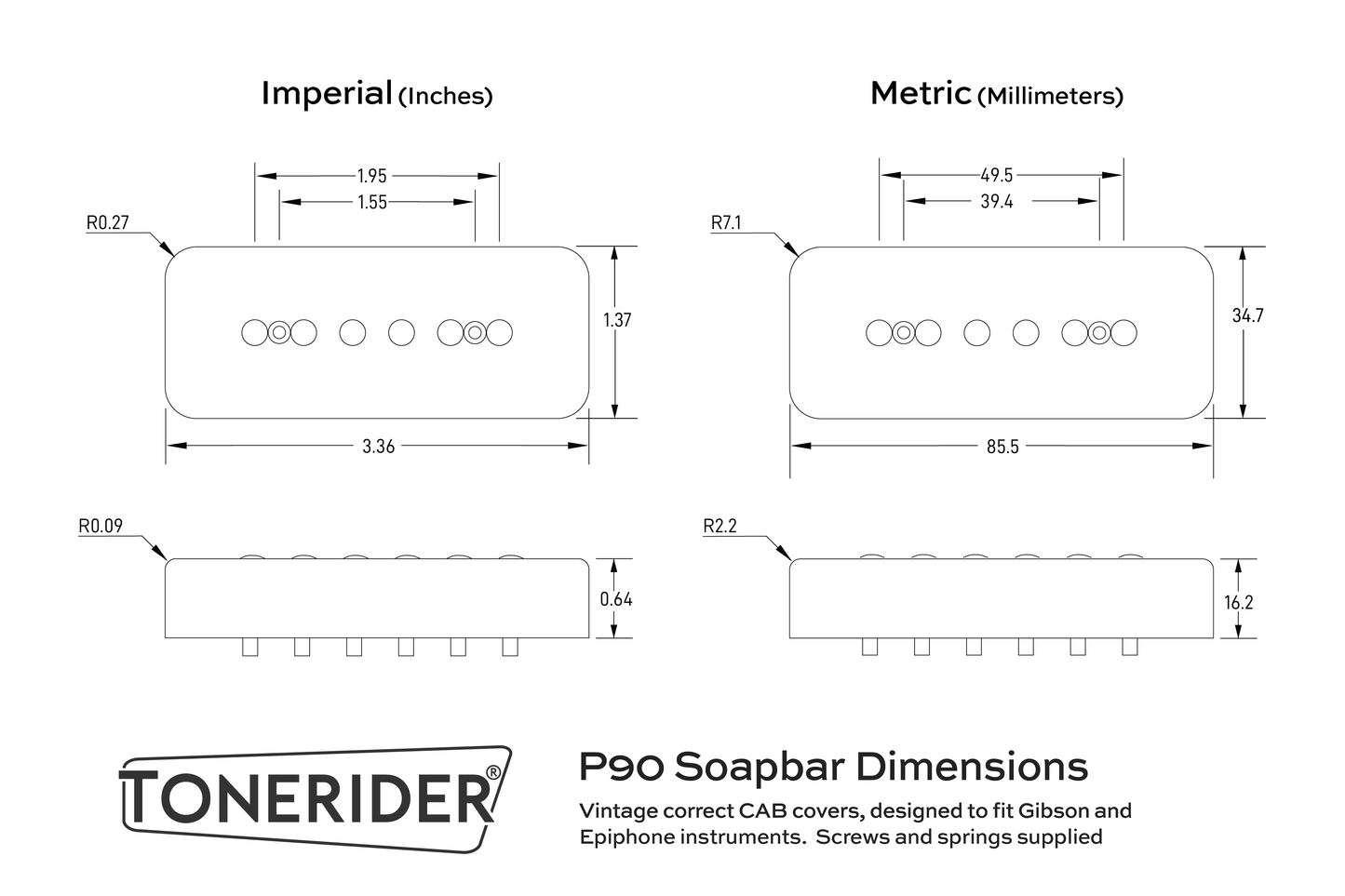

Dimensions
Wiring Diagrams
