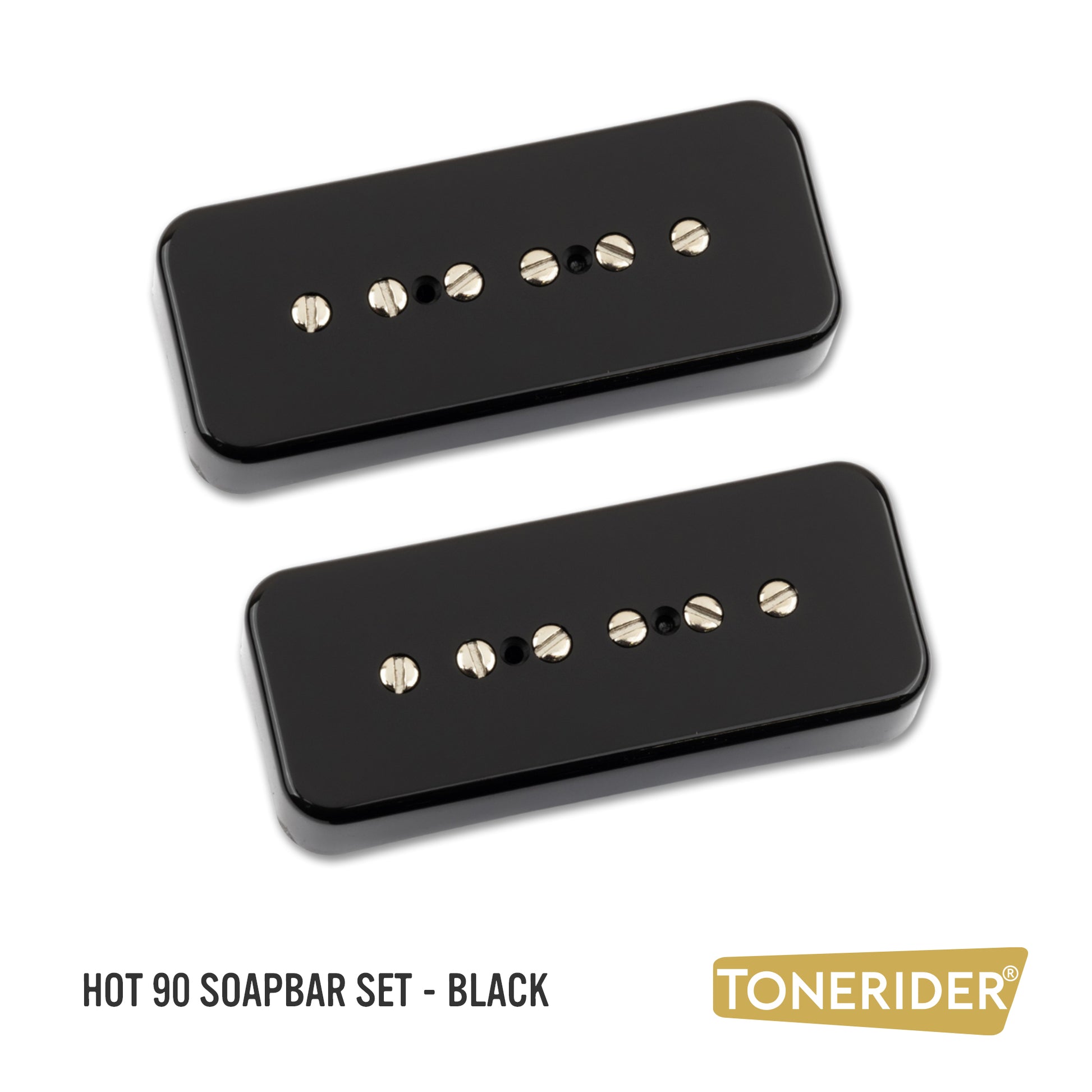

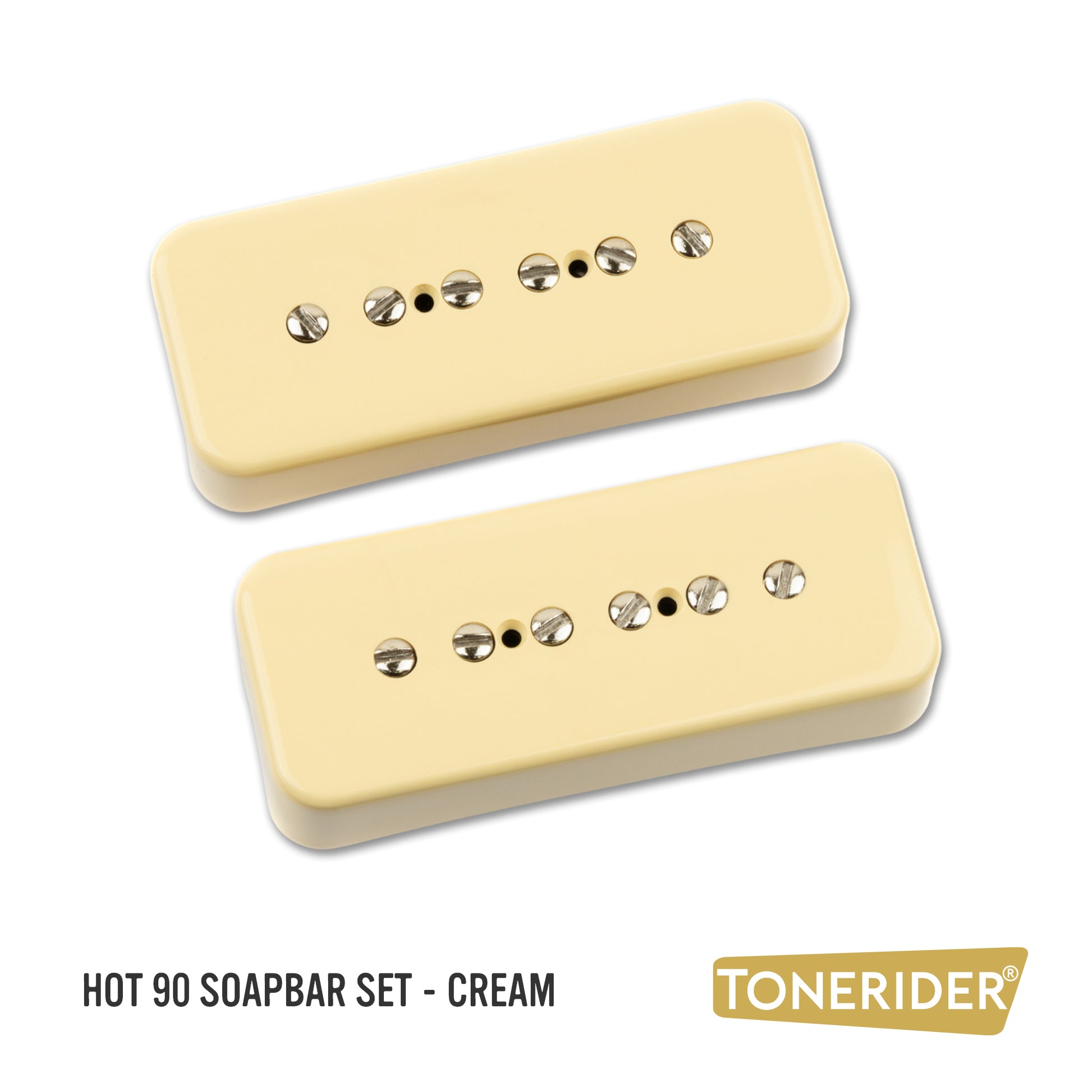

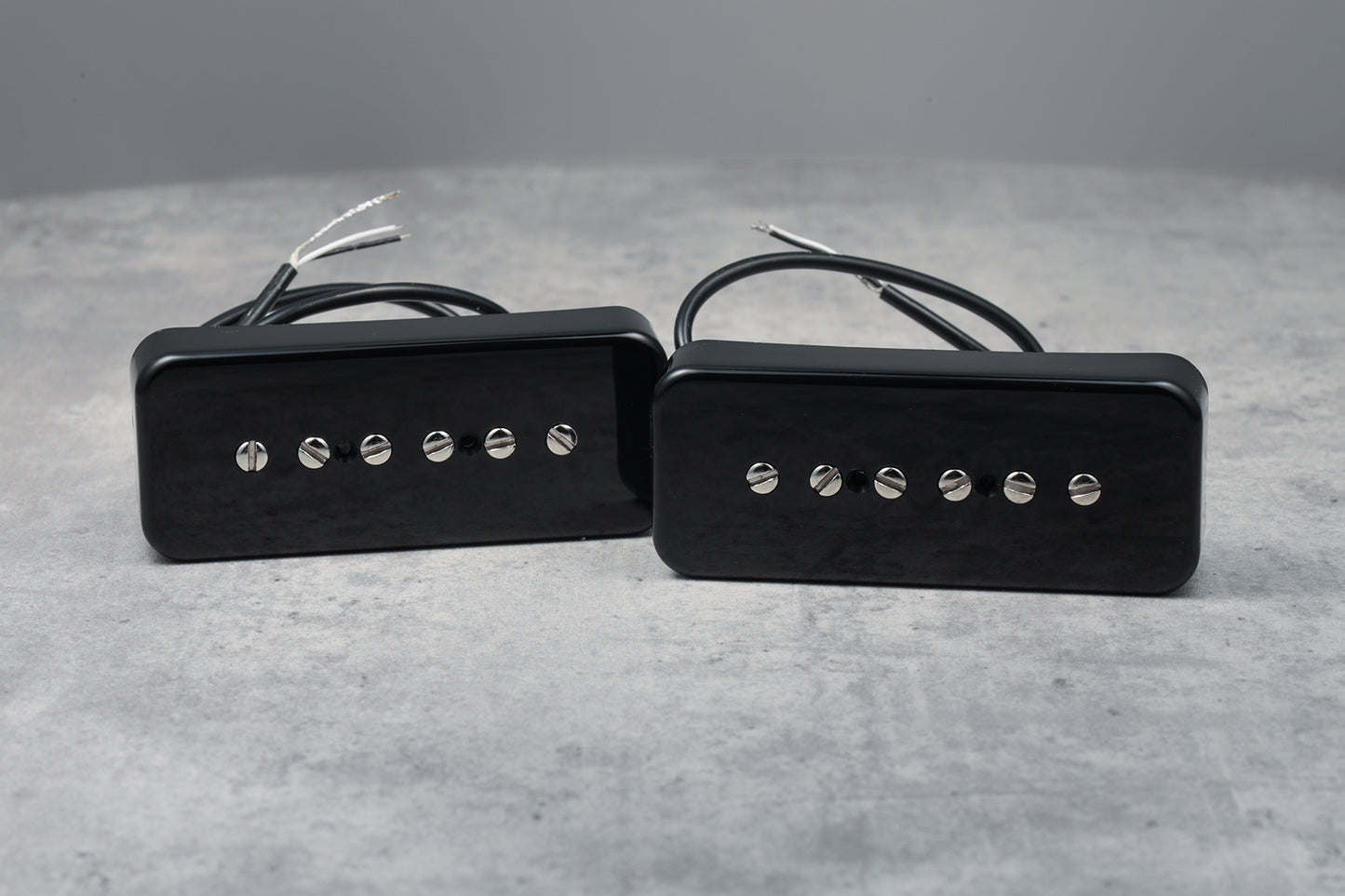

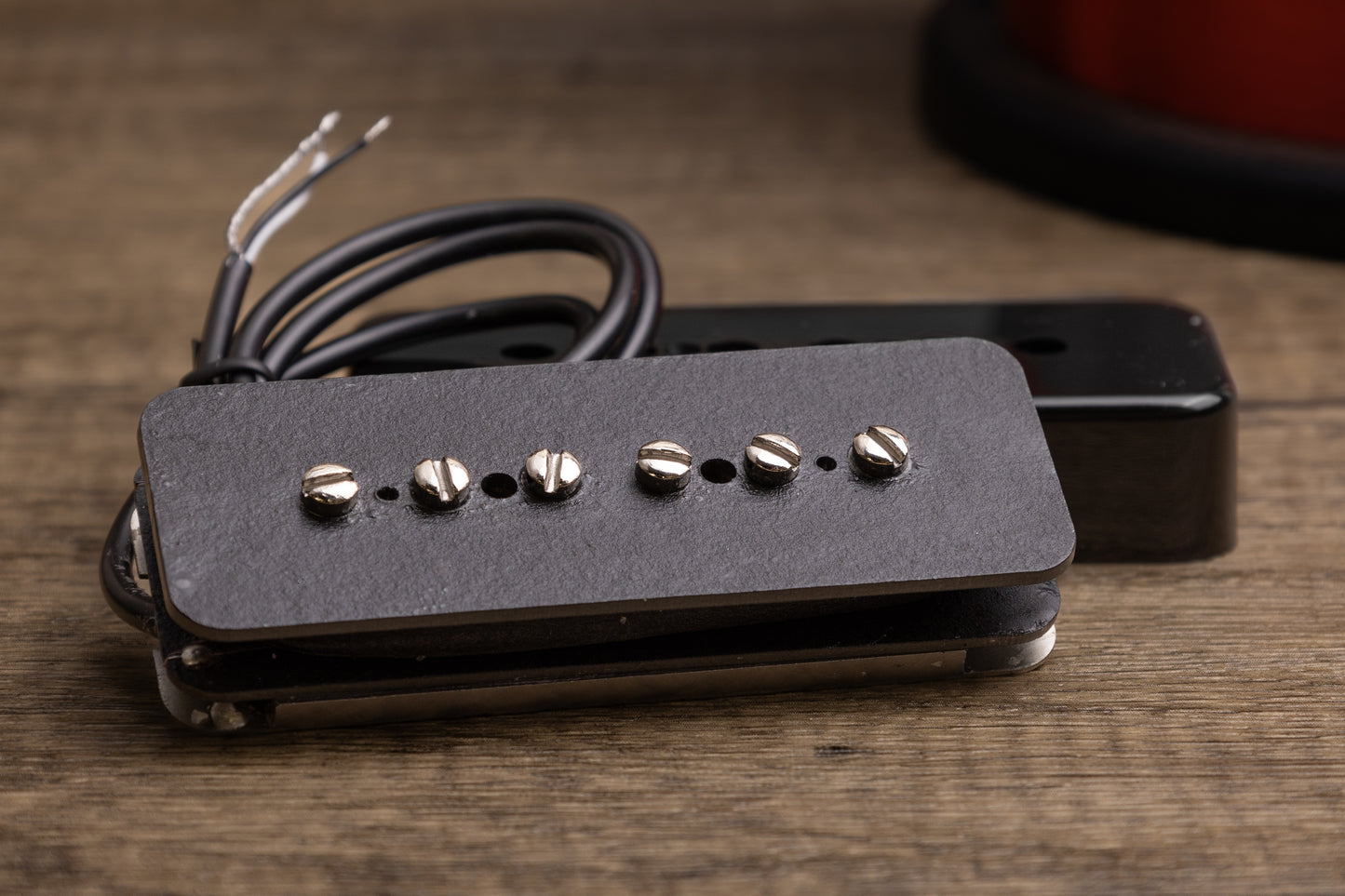

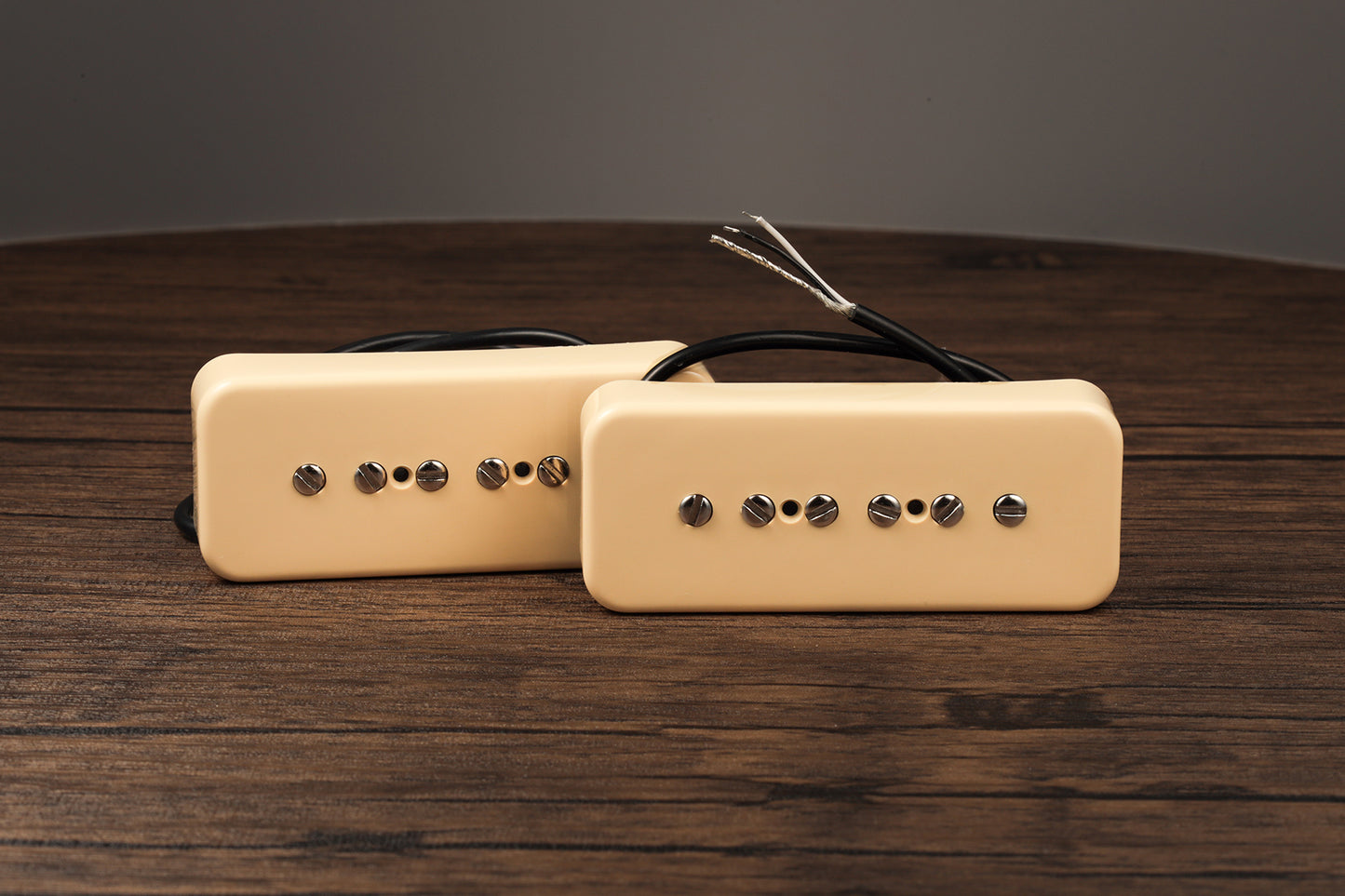

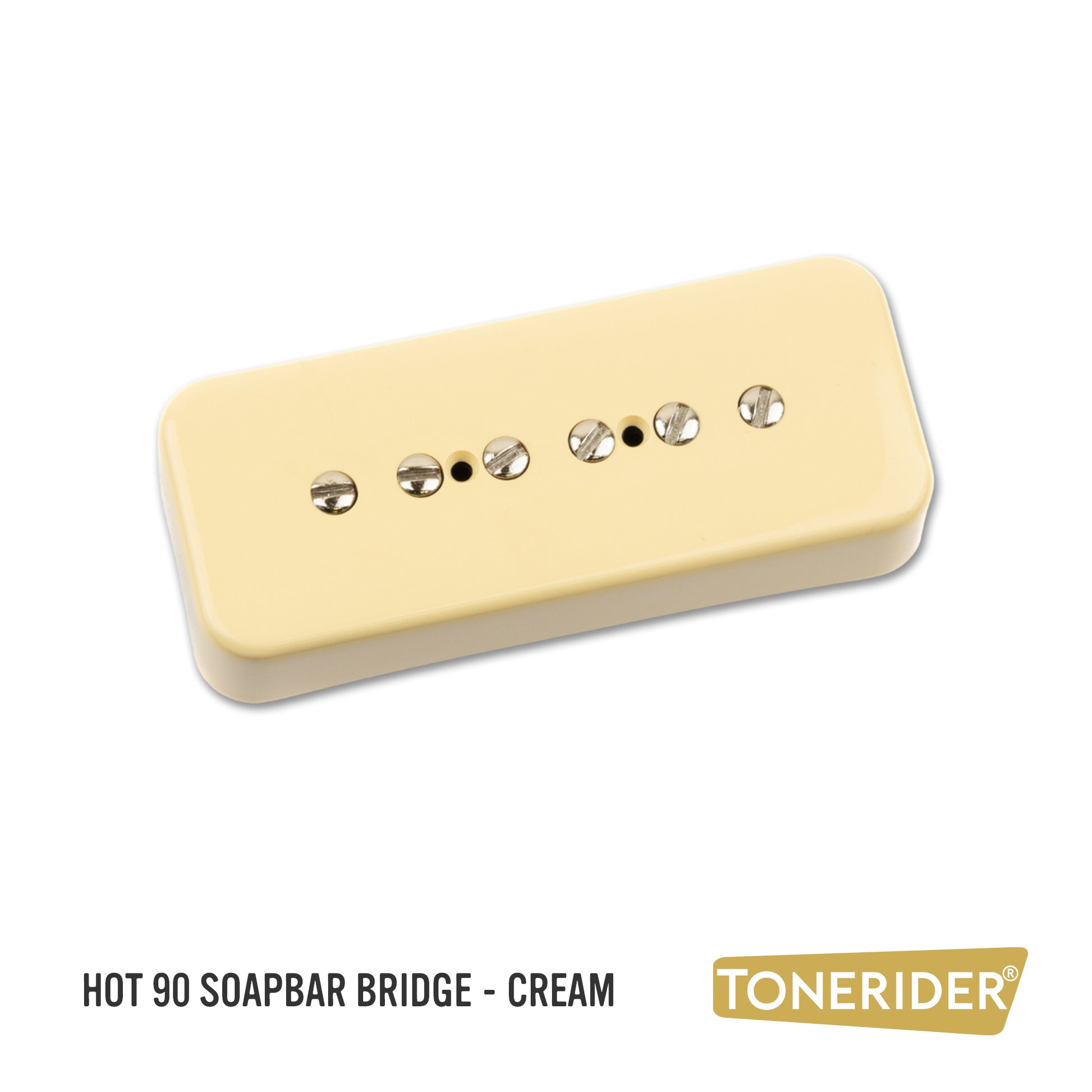

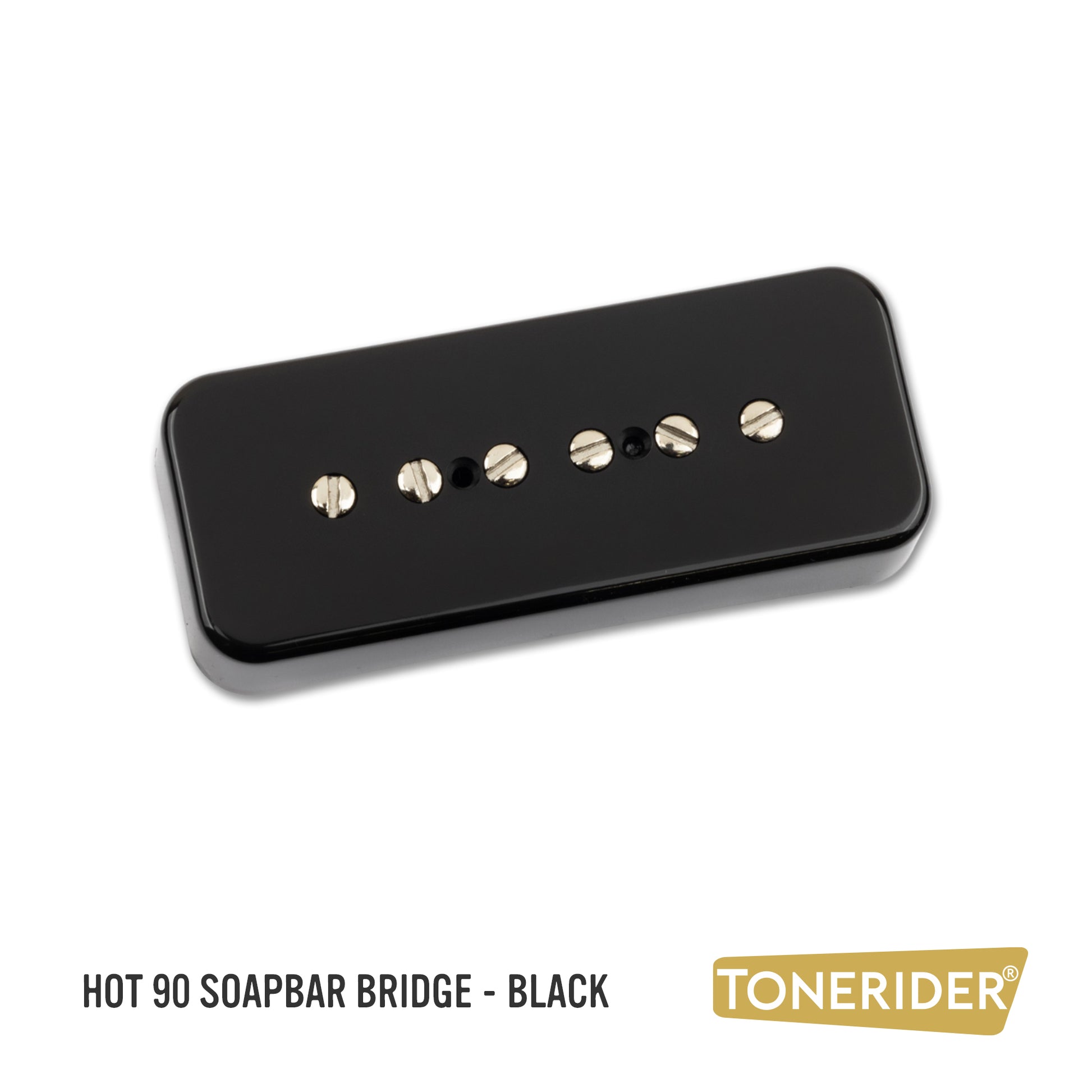

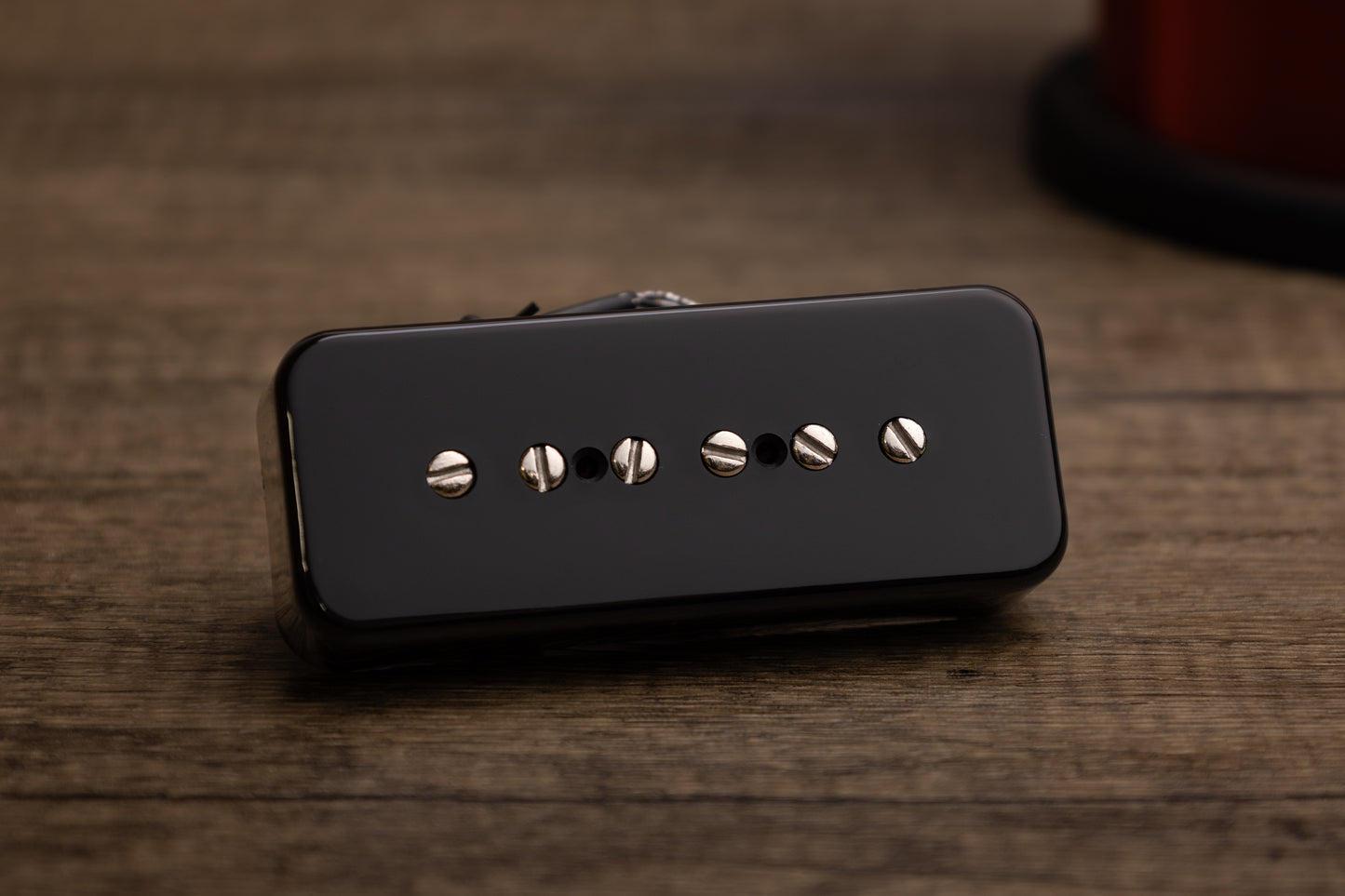

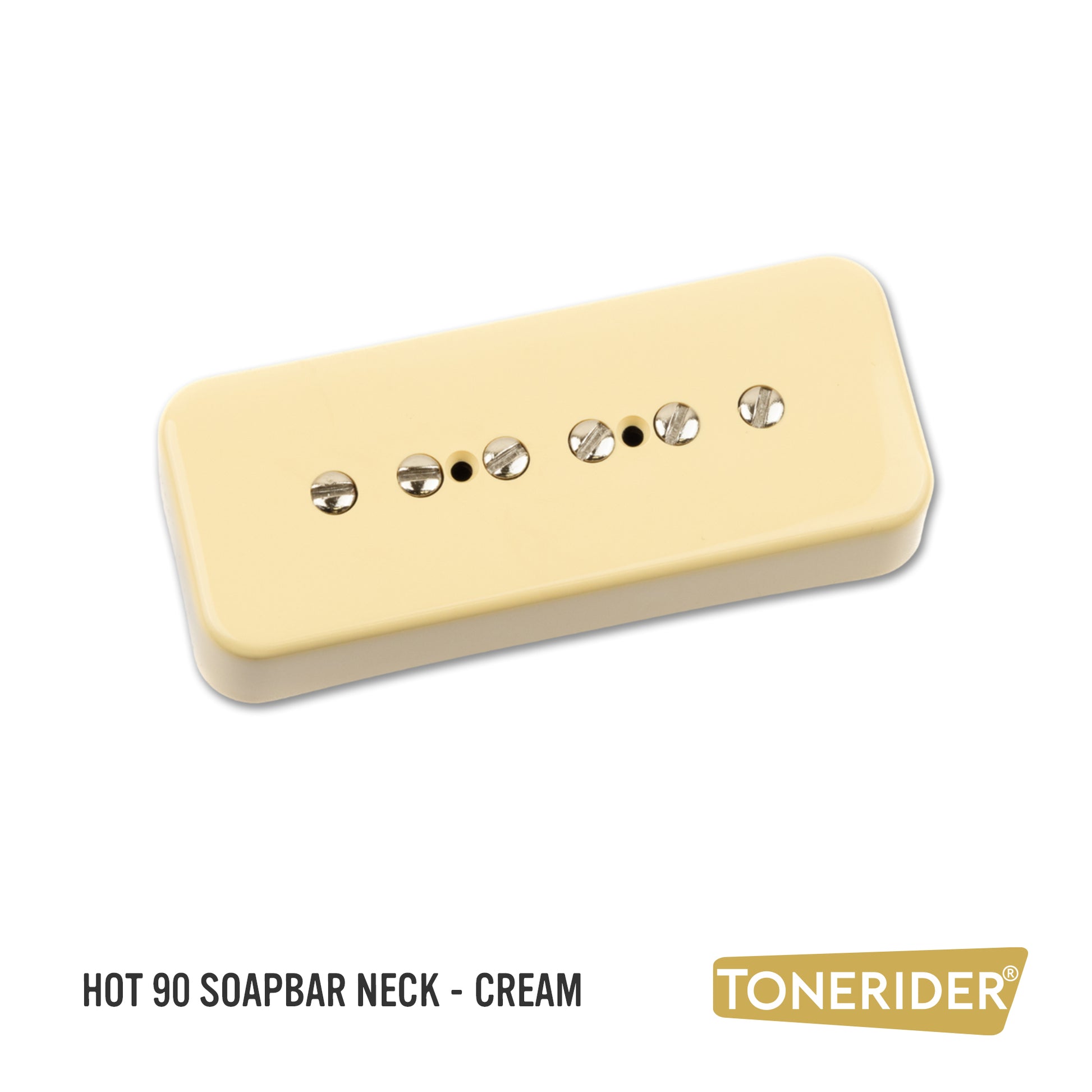

The Hot 90s are overwound, and powered by a pair of cast Alnico V bar magnets. With more attack and a more sizzling, harmonically rich bass than most P90s, this set is perfect for the hard blues and rock oriented P90 fan.

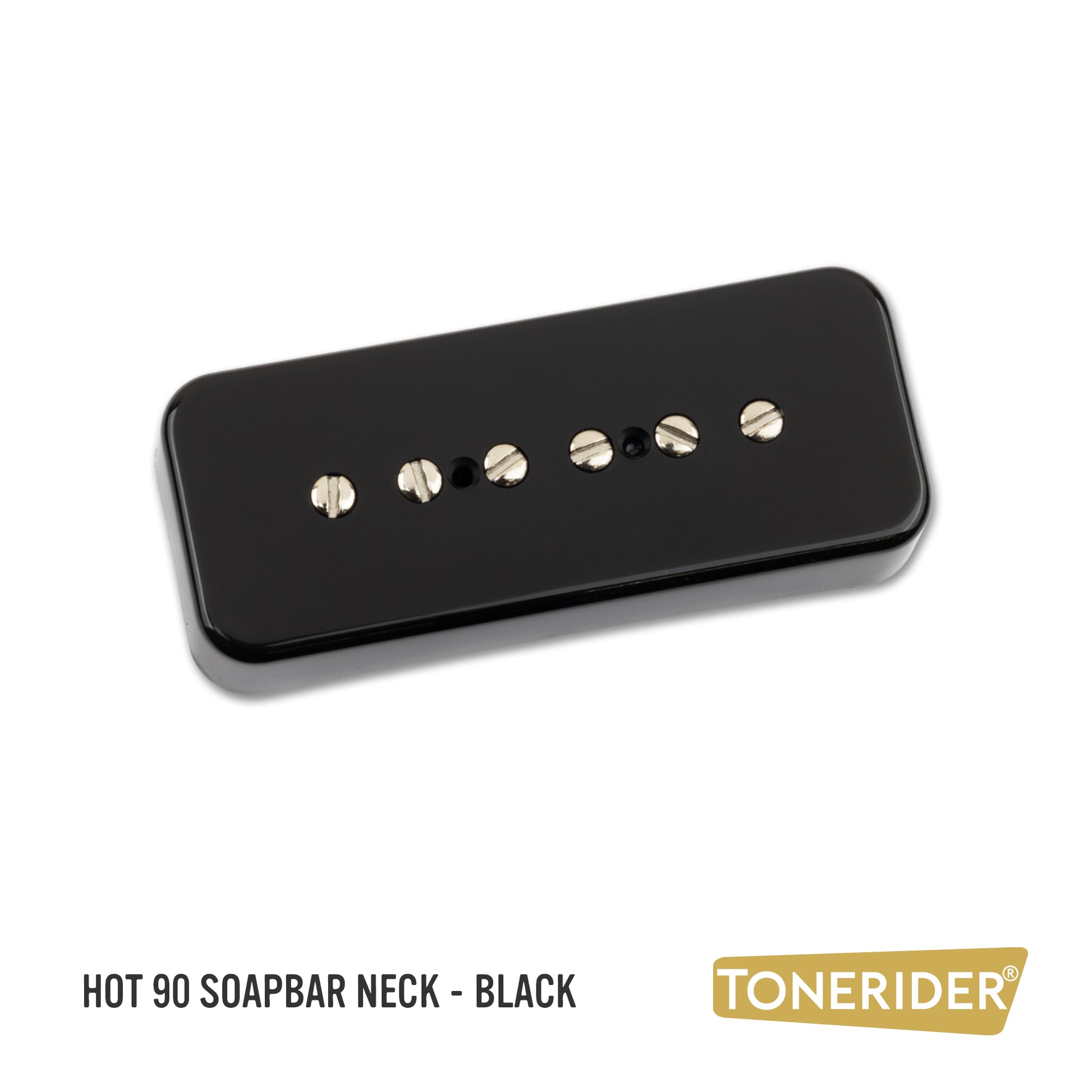

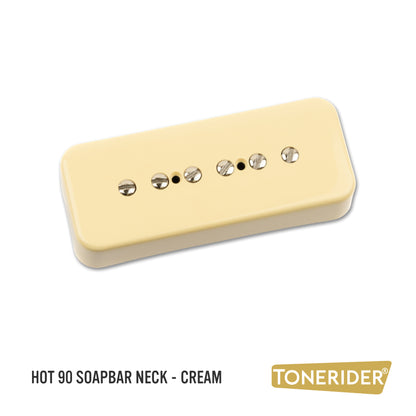

The neck pickup is RWRP for noise-cancelling operation with the bridge pickup in parallel positions.
Vintage correct CAB covers now on all models.
Screws and foam supplied for installation.
Neck 7.8k / Bridge 8.2k, Alnico V
Tech Specs
| Hot 90 Neck | Hot 90 Bridge | |
|---|---|---|
| Model | H90N | H90B |
| Magnet | Alnico 5 Bar | Alnico 5 Bar |
| DCR | 7.8k | 8.2k |
| Inductance | 6.6H | 6.6H |
| Hookup Wire | 2-Conductor | 2-Conductor |
| Winding Direction | Counter-Clockwise | Clockwise |
| Polarity | South Pole Up | North Pole Up |
Dimensions
Wiring Diagrams
